SRT MIN6 Coreless HV Servo: A Compact Option for 1:12 RC Builds

Choosing a servo for a 1:12 scale RC car means balancing size, speed and torque. The SRT MIN6 coreless HV servo brings those considerations into a compact package, with a listed torque rating of 8.0 kg cm and a travel speed of 0.07 seconds per 60 degrees at 7.4V.

Whether you are putting together a new car or replacing an existing servo, here is what to know about the SRT MIN6 before choosing it for your setup.

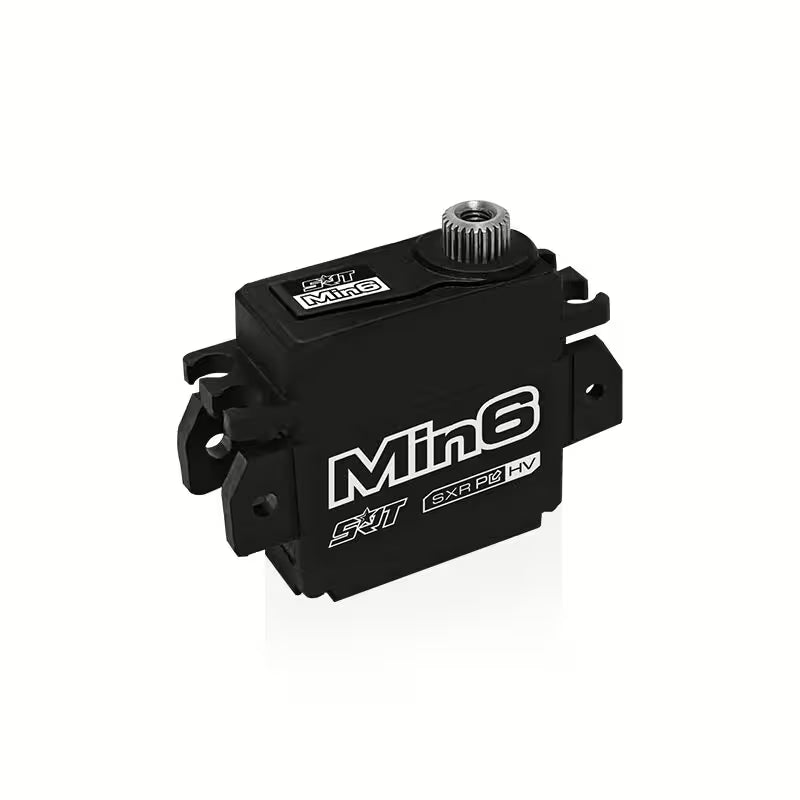

A compact servo for 1:12 scale RC cars

Space matters in a small RC chassis. The SRT MIN6 measures 27.2 x 12.1 x 28.2 mm and weighs 18.0 g, making it an option to consider when your build calls for a compact 1:12 scale servo.

Scale alone does not guarantee compatibility. Compare the case dimensions and mounting arrangement with your chassis, and confirm the connector and servo horn requirements before ordering.

Understanding the SRT MIN6 speed and torque ratings

The MIN6 specifications list performance at four supply voltages. These figures give you a useful starting point when matching the servo to your electronics.

At 4.8V, the listed torque is 5.0 kg cm, with a speed of 0.10 seconds per 60 degrees.

At 6.0V, the listed torque is 6.8 kg cm, with a speed of 0.08 seconds per 60 degrees.

At 7.4V, the listed torque is 8.0 kg cm, with a speed of 0.07 seconds per 60 degrees.

At 8.4V, the listed torque is 9.0 kg cm, with a speed of 0.062 seconds per 60 degrees.

The speed figure describes how quickly the servo travels through 60 degrees. The torque figure describes its turning force. Both depend on the supply voltage, so use the ratings that match the power your setup actually delivers.

Coreless motor and 7075 aluminum gearbox

The SRT MIN6 uses a coreless motor, and its product specifications list a 7075 aluminum gearbox. The image below shows the servo with the upper cover removed, offering a closer look at the internal gear arrangement and output shaft.

For anyone comparing a coreless RC servo for a compact build, the MIN6 combines this construction with a small footprint and published performance across several voltage settings.

Check your power supply before installation

When selecting a high voltage RC servo, check more than the battery label. Confirm the voltage supplied to the servo by your receiver power system or BEC, and make sure the components sharing that supply are suitable for the intended voltage.

Before running the car, check that the linkage moves freely and set steering endpoints so the servo does not push against the mechanical limits of the steering system. A careful installation matters just as much as the specifications on the box.

Is the SRT MIN6 right for your build?

The SRT MIN6 is worth considering if your 1:12 RC setup needs a compact coreless HV servo and its dimensions, mounting arrangement and electrical requirements match your car. Its 7.4V rating of 8.0 kg cm and 0.07 seconds per 60 degrees provides a clear reference point for comparing it with other options.

Explore the SRT MIN6 coreless HV servo at DigitalRc.ca to review the product details and choose the right fit for your next build.
