SRT MIN6 Coreless Servo HV for 1:12 (8.0kg/0.07sec @7.4V) SRT-MIN6
SRT MIN6 Coreless Servo HV for 1:12 (8.0kg/0.07sec @7.4V) SRT-MIN6
Regular price
$0.00 CAD
Regular price
Sale price
$0.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

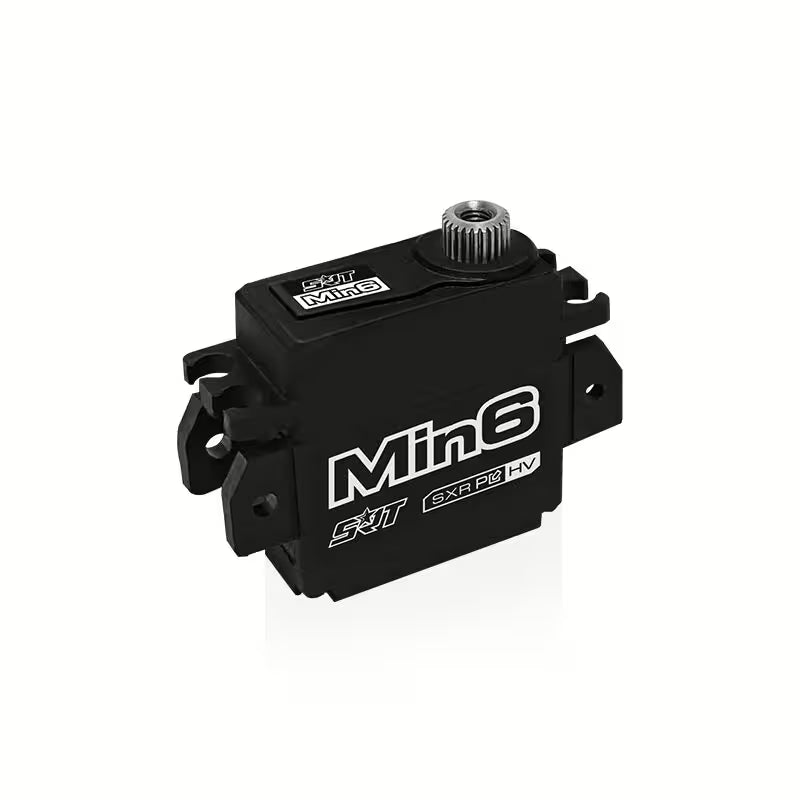

The SRT MIN6 is a high voltage coreless servo made for 1:12 scale RC setups. At 7.4V, it delivers 8.0kg of torque with a 0.07 second speed rating, giving you a compact servo option when quick response matters.
If you are choosing a servo for a new build or replacing one in your current setup, check your mounting space, connector and power supply requirements before ordering.
| Voltage: | 4,8V | 6V | 7,4V | 8,4V |
| Actuating speed: | 0.1 sec/60° | 0.08 sec/60° | 0.07 sec/60° | 0.062 sec/60° |
| Torque: | 5.0 kg-cm | 6.8 kg-cm | 8.0 kg-cm | 9.0 kg-cm |
| Motor: | Coreless | |||

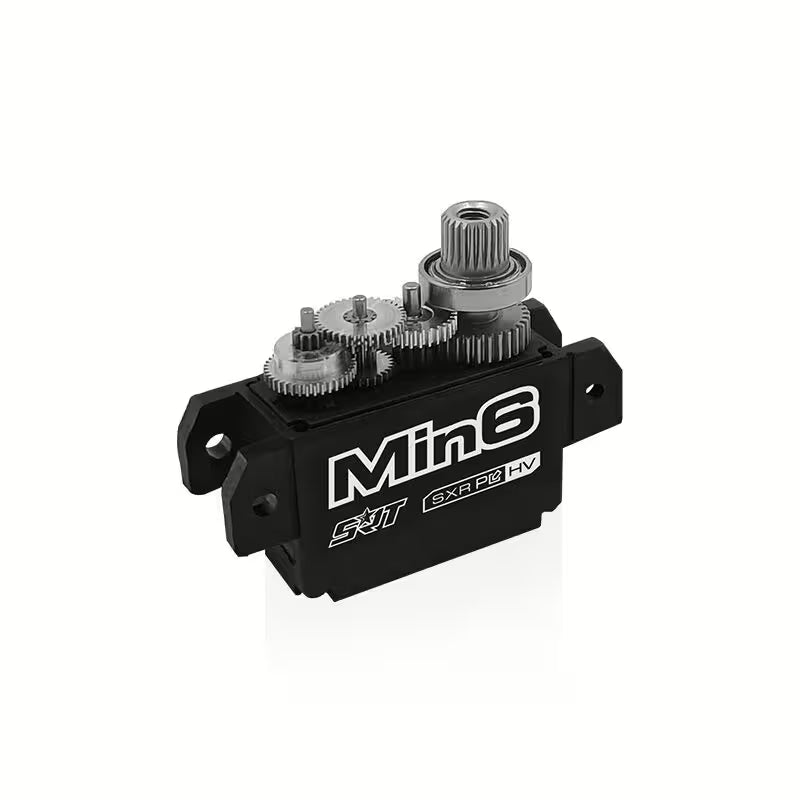

| Gearbox: | 7075 Aluminum | |||
| Dimensions: | 27.2 x 12.1 x 28.2mm | |||
| Weight: | 18.0g | |||
| Insert: | 1/12 | |||
